6 Layer Rigid Printed Circuit Board
HSX Circuit covers over 5,000 PCB products monthly, from single layer to 32L FR-4 PCB, from IMS PCB,HDI Boards, to high frequency PTFE boards and Rigid-flex boards. We provides flexible quick turn production services (12 hours to72 hours), as well as small volume to big volume PCB manufacturing.
Products are widely used in high-tech fields such as communications, power supplies, computer networks, digital products, industrial control, science and education, medical devices, and aerospace.
Max layers: 32layer (≥20 layer needs to review)
Max finish panel size: 740* 500 MM(>600 MM needs to review)
Min finish panel size: 5 * 5mm
PCB material: PI +FR4,FR4, Rogers...
PCB thickness: 0.2~4.0mm(＜0.2 mm,＞4 mm needs to review) (Board thickness ≤ 0.6mm,do not apply for HASL surface)
copper thickness of inner and outer base copper: Min 0.3/0.5oz,Max 3oz, advance 4-6oz
Bow and twist: 0.075%
Min. hole size: 0.15mm(＜0.15 mm needs to review)
HDI Min drill hole: 0.08-0.10MM
PCB track/gap: 3mil(0.075mm)
PCB outline: Routing/V-CUT/Punching
Solder mask thickness: standard 15-20um; Advanced: 35um
Min solder mask bridge width: green 4mil,other colour 4.8mil
Solder mask filling holes: 0.1-0.5mm
The color of solder mask: green,matt green,blue,matt blue,black,matt black,yellow,red,white,etc
PCB silkscreen: White, Black and as your request
Peelable mask thickness: 500-1000um
Oxidation film of OSP: 0.2-0.5um

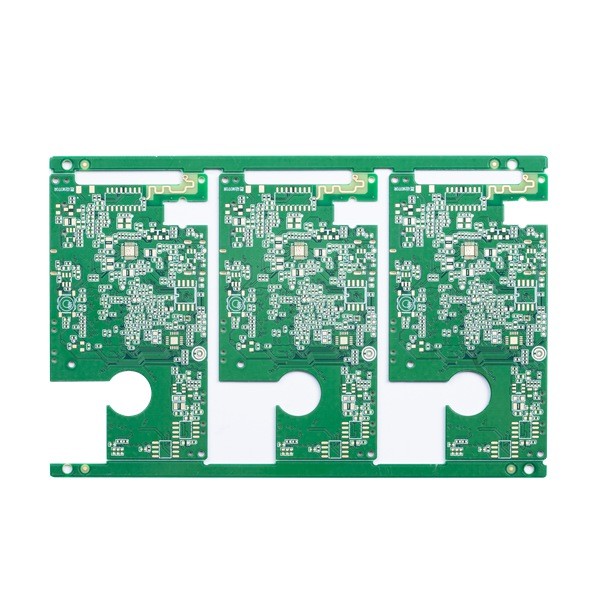

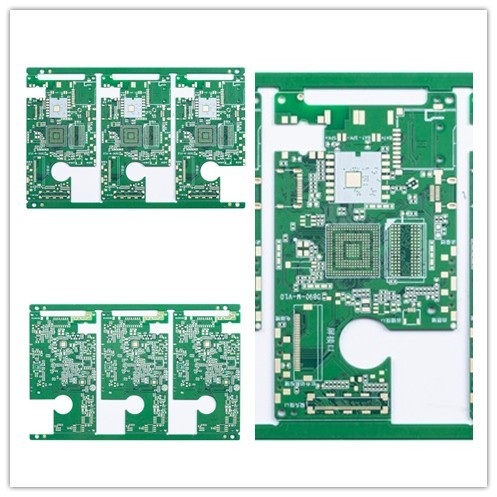

| Layer counts: | 6 layer | Circuit board laminate: | FR4, TG150 |
| Different Copper thickness: | 1/1/1/1/1/1OZ | PCB Board thick: | 1.0 MM |
| Smallest Mechanical drilling hole: | 0.20 mm | Min. line distance/space: | 3/4mil |
| Solder mask color: | Green | Legends' color: | White |
| PCB surface finished: | Immersion Gold 3u | Board profile: | Milling+V-CUT |
| PCB Board Application: | power supplies |
| Requesting Special requirement: | small line space and gap:3/4mil/impedance control/resin filled and plated over/0.25mm BGA |
FAQ:
Q1:Are you a factory or trade company?
A: Yes, we are the factory, we have independent quick turn prototype PCB manufacturing & big volume PCB production lines.
Q2:What kind of PCB file format can you accept for production?
A: Gerber, PROTEL 99SE, PROTEL DXP, POWER PCB, CAM350, ODB+(.TGZ)
Q3:Will our PCB files be checked.
A: Yes. Your data will be checked by our Engineers Team. If we find any technical issues or have any inquires, we will contact you and solve the problems together.
Q4: Does our product will be tested before shipment.
A: Yes. We could provide Function Circuit Testing if you provide us the testing methods.
Q5: Do you provide PCB Assembly services, too?
For heavy goods more than 300kg, we may ship your PCB boards by ship or by air to save freight cost. Of course, if you have your own forwarder, we may contact them for dealing with your shipment.
